Automatic Can Body Internal Welding Seam Powder Coating Machine CTPC for food can making

Internal Side Seam Protection: Canbody Powdering/coating on side seam;
Retail price
0.0
Market price
0.0
Number of views:
1003
Product serial number
Quantity
-
+
Stock:
Operation:
Automatic
Can Size:
D50-200(mm) / D80-400(mm)
Speed:
up to 60Meters/Minute
Line Dimension:
L1,080 x W720 x H1,820mm
Line Weight:
300kg Approx.
1
Feature
Parameters
Workflow
BOM
Technical Parameter
YouTube Video
PDF Download

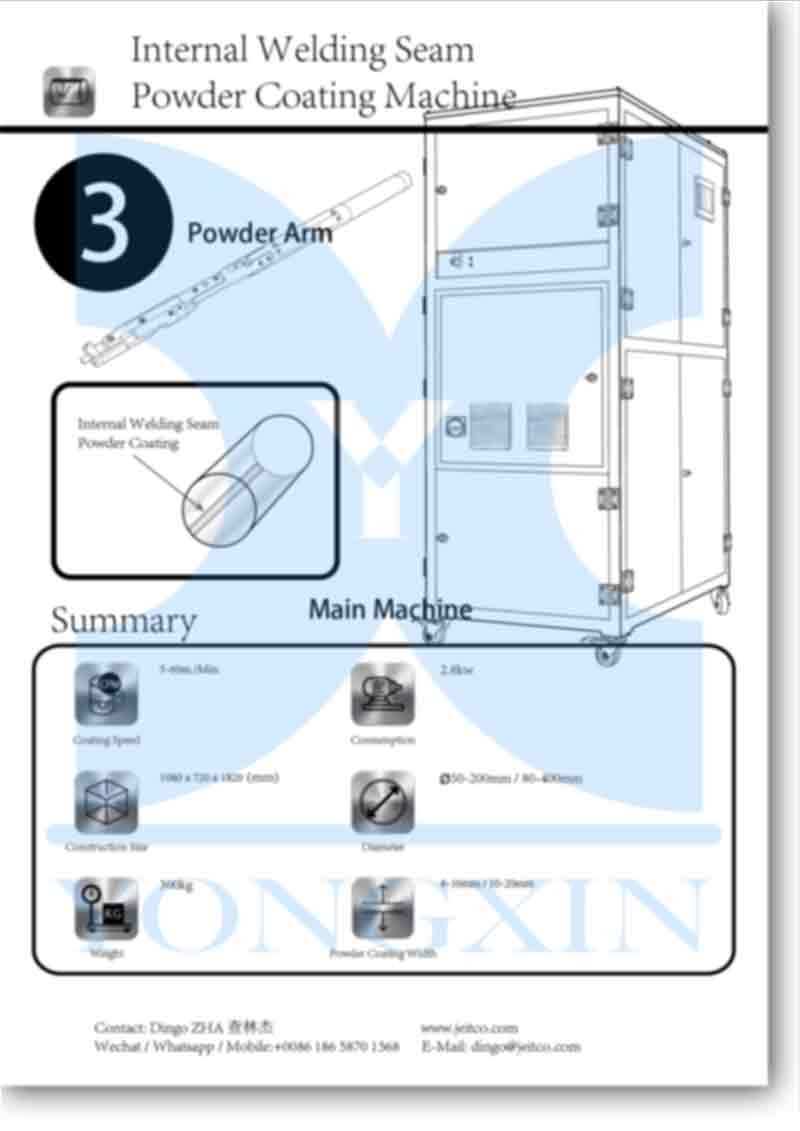

Automatic Can Body Internal Welding Seam Powder Coating Machine CTPC for food can making

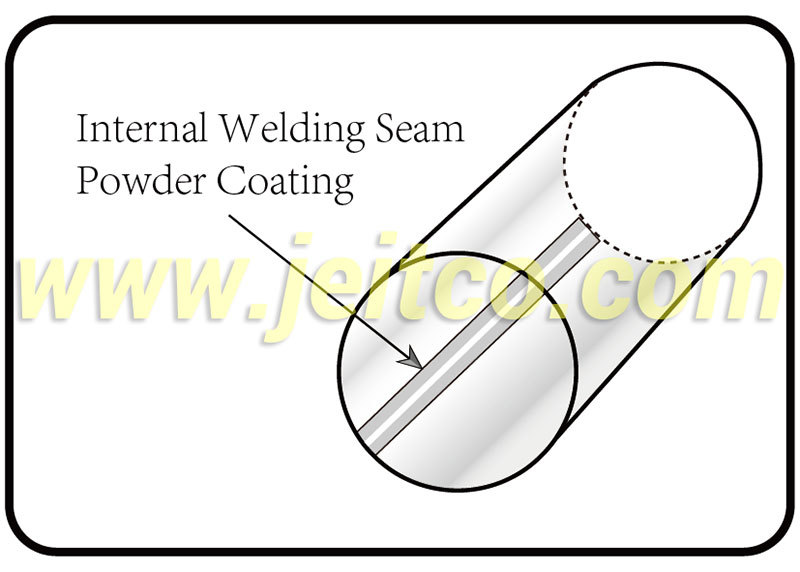

Powder Inside Seam Protection

Coatings comply with North American and European regulations and are food contact compliant, Coatings can be considered as protective barriers as they protect the food from the metal can and the can from the food. Without a coating between the two, the food could attack the can causing damage such as perforation corrosion. That's why we need this coating machine to make the metal can "fresh inside, and firm outside".



These coatings are designed for existing can making equipment, (support various of seam welders), they can be introduced to canmakers's lines that use standard equipment without major modifications. Our coating machine machine the coatings which are formulated according to the latest European and/or American regulatory requirement, including national legislations such as the one applicable in France regarding the ban of PBA containing coatings in contact with food, as well as California Proposition 65.

Model CTPC
Usage

Automatic Powder Coating at

Food Can Internal Welding Seam

for Anti rust & corrosion

Operation Mode Automatic
Item Condition Brand-New
Main Color Light Grey
Powder Coating Speed 5-60m./Min.
Powder Coating Width 8-10mm/10-20mm
Range of Can Diameter Ø50-200mm / Ø80-400mm
Coating System Method

High Voltage

Electrostatic Adsorption

Powder Coating Speed Adjustable Function Provided

Powder Automatic

Circulation Function

Provided

Automatic Clean Function

After Finished Spraying

Provided
Powder Arm Device Provided

Touch Panel

Screen Device

Built-in WEINVIEW 7'' Color

Display (English Language Interface)

PLC Device Built-in (Provider MITSUBISHI)
VFD Device Built-in
Pneumatic System Supplier AirTAC

Pad-Lock Emergency

Switch (ON-OFF)

Built-in

Power System Overload

& Short-Circuit Protection

Provided

Protection Grade

for Main Machine

Class Index IP34
Working Signal Lamp Built-in
Eazy-Roll Caster 4-pc Built-in
Air Consumption 0.6Mpa
Air Requirement 100-200L/min.
Power Supply Required 380V 50/60Hz @ 3L+1N+PE
Standard IEC60947 for Electrical System
Power Consumption 2.8kW

Coordinate with

Drying Machine

Required
Construction Size L1,080 x W720 x H1,820mm
Weight 300kg
Shipment Lead time 8-10weeks
Warranty

1st Year FREE CHARGE for parts

from shipping date + Lifetime services

Packaging

Plywood Case

( Standard Export Packaging)

Operator Manual PDF / Printed paper provided



Keyword:
powder machine
powdering machine
internal side seam protection on side seam
tin can powder machine
seam powdering
