Semi-Automatic Slitting Machine for Square Tin Can Making

Gang Slitter for Tin Can Making, The circular knives are made from SKD-11 alloy steel (JIS Standard/GB Standard/DIN Standard), giving excellent cutting effects and maximum wearing resistance.
Retail price
0.0
Market price
0.0
Number of views:
1004
Product serial number
Quantity
-
+
Stock:
Operation:
Semi-Automatic
Can Size:
Various for Square Tin Can
Speed:
Operator Dependent
Line Dimension:
L1,500 x W1,600 x H1,105 (mm)
Line Weight:
1,100kg Approx.
1
Feature
Parameters
Workflow
BOM
Technical Parameter
YouTube Video
PDF Download

Semi-Automatic Slitting Machine for Square Tin Can Making

The circular knives are made from SKD-11 alloy steel (JIS Standard/GB Standard/DIN Standard), giving excellent cutting effects and maximum wearing resistance.

 Slitting Machine

Fundamentally, slitting machine encompasses strategic cutting, shearing and slitting tin plates into blanks.  From these blanks, the can body, lid and bottom can be obtained. Therefore, slitting is the essential stage for the can making process. The slitting is done per request, consequently, it is dependent on the material and size of the can body, lid and bottom that is needed.

The slitting process

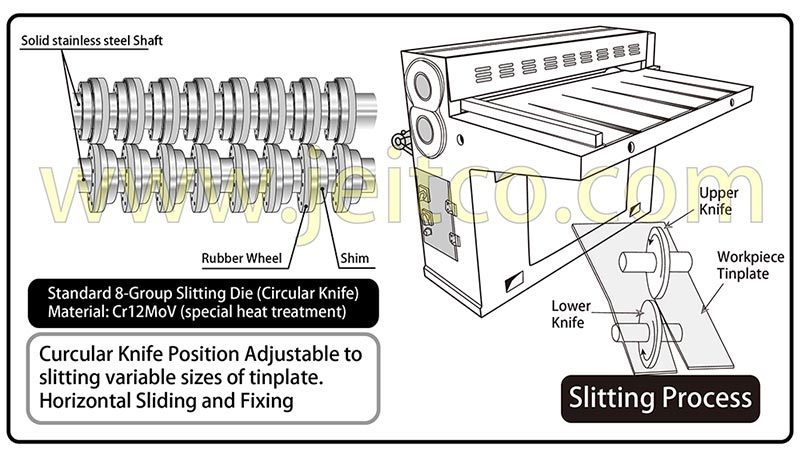

It’s one of the most straightforward process as just a single operator is expected to operate the machine.  The machine fundamentally consists of a platform where the plates are put. Blades are grouped into two groups located opposite each other; these blades are mounted on two drive shaft driven by motor. Slitting is performed by the rotating bladed disks. The blades are safeguarded for safety of the operator. Blank width is determined by the distance between each two blades.

A switch strategically fitted on the machine to help in turning on and off the machine. It has an extremely simple to use switch and no one needs intense training to effectively use the machine. When it comes to the actual shearing process, the operator inserts the plate into the blade groups. The tin plate passes through the rotating blade groups and is sheared into proper size blanks. Operator has to do this cautiously preventing his hands from injury.

Feature:

§  The slitting machine has a compact framework and structure to ensure it covers a small area in the working space. Thus allowing more area for other manufacturing processes.

§  The strong steel and other groundbreaking materials that are used to make the machine guarantee a long lasting and reliable production

§  It’s a fast working machine hence more blanks can be obtained at a brief timeframe

§  The machine is very easy to operate and an operator doesn’t need an intense training to know how to effectively use it.

§  The machine has a very low maintenance cost.

§  The machine allows different sizes of blanks to be obtained as few adjustments can be made.



This machine is used for cutting the tin plate sheets into strip and blanks for making tin cans or tin containers.

Tinplate Sheet Single Slitting Machine as the 1st step of can-making process, this machine is semi-automatic operated, simple design and consruction, easy to operate and maintentance. It own 8-group circle slitting dies for make 9 strips of metal sheet, tailor-made number of slitting die is provided.

Product Name Tinplate Single Slitter
Usage Tinplate Single Slitting for Canmaking
Model GT1B5
Item Condition Brand-New
Operation Mode Semi-Automatic
Main Color Silver
Output Capacity (CPM) Operator Dependent
Feeding Mode Manual Feed-in
Feeding Table Size 720 x 1300 (mm)
Main Frame Material High Strength Steel
Slitting Method Circular Knife
No. of Knifes (Slitting Die) 8-Group
Knife Material (Slitting Die) High-grade Alloy Tool Steel (Cr12MoV)
Knife Adjustable Mode Horizontal Sliding and Fixing
Support Materials Tinplate / Steel-based
Max. Sheet Thickness 0.4mm
Max. Sheet Width 1050 - 1300 (mm)
Min. Sheet Width 55mm
Standard IEC60947 for Electrical System
Safety Machine Fully Guarded
Motor Power 1.1kw = 1.5HP
Motor Rotation Speed 900 RPM
Power Supply Required 380V 50/60Hz @ Three-Phase Sys
Motor Supplier SIEMENS
Electrical System Supplier Schneider
Net Weight 1100kg
Construction Size 1500 x 1600 x 1105 (mm)
Lead time: 3-4 weeks
Warranty 1st Year FREE CHARGE for parts from shipping date + Lifetime services
Packaging Plywood Case (Standard Export Packaging)
Optional Extra Knife Grinder
Operator Manual & Instruction PDF / Printed Paper Provided
Service, Training & Replacement Parts are available from YONGXIN
Cutting capacity is limited by allowable number of knives on the machine.
