12-15cpm QYA180F Semi-Automatic Pneumatic-Drive Tin Can Flanging Machine

Automatic Flanger for small round can making: Flange: The flared projection of the body around the top of a container.

产品编号:

1051319971801292800

Model:

QYA180F

Operation:

Semi-Automatic

Application:

Flanging

Can size:

D52-180(mm); H50-200(mm)

Speed:

12-15cpm (Operator Dependent)

Classification:

keyword:

Flanging machine

flanger

round can flanging machine

round can flanger

tin can making machine

small round can flanger


Product Overview

Message
Feature Workflow BOM Technical Parameter YouTube Video PDF Download

12-15cpm QYA180F Semi-Automatic Pneumatic-Drive Tin Can Flanging Machine

flanging machine specifications

Model QYA180F
Usage Semi-Auto Round Can Body Flanging
Operation Mode Semi-Automatic Pedal Switch Operate Pneumatic Drive
Output Capacity (CPM) 12-15 cans/min. Operator Dependent
Applicable Can Diameter Φ52-180 (mm)
Applicable Can Height H50-200 (mm)
Feeding Mode Manual Vertical Feed-in
Support Material Tinplate / Steel-Based / Chrome
Material Hardness T2.5 - DR8
Thickness Less 0.5mm
Forming Die Changeable Function Provided
Forming Die Material High-grade Alloy Tool Steel (Cr12MoV)
Compressed Air Consumption 200L/min
Pressure of Compressed Air 0.5-0.7Mpa
Pneumatic Assy. Provider AirTAC
Pedal Switch Provider Chint
Power Supply Required 380V AC 50/60Hz Three-phase sys.

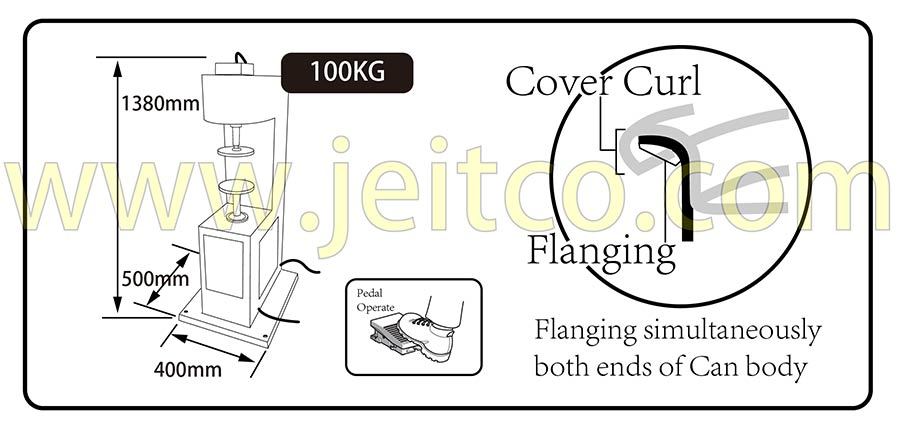

Construction Size L400 X W500 X H1,380 (MM)
Weight 100kg
