Automatic Square Can Tinplate Sheet Slitting Machine c/w feeder
产品编号：
1051289866521632768
Operation：
Automatic
Can Size：
Various (Tailor-made)
Speed：
up to 50spm
Line Dimension：
L6,000 x W1,600 x H1,800 (mm)
Line Weight：
3,500kg Approx.
Classification：
keyword：
tinplate slitter
tinplate slitting
metal sheet slitting
square can slitter
automatic slitter
tin can slitter
canmaking
Product Overview
Automatic Square Can Tinplate Sheet Slitting Machine c/w feeder
The circular knives are made from SKD-11 alloy steel (JIS Standard/GB Standard/DIN Standard), giving excellent cutting effects and maximum wearing resistance.
This machine can be used for slitting tinplate sheet or trimming tinplate sheet before seam welding, make the tinplate blanks perfect meet customer's requirements, can be adjust one side trimming, double side trimming, etc.
| Product Name | Automatic Tinplate Single Slitter |
| Usage | Tinplate Slitting for Canmaking |
| Model | GT1B8 |
| Item Condition | Brand-New |
| Operation Mode | Automatic |
| Main Color | Blue+White |
| Output Capacity (CPM): | up to 50 P./min. |
| Automatic Sheet Feeder | Built-in |
| Automatic Adjust Device | Built-in |
| Automatic Take-up Device | Built-in |

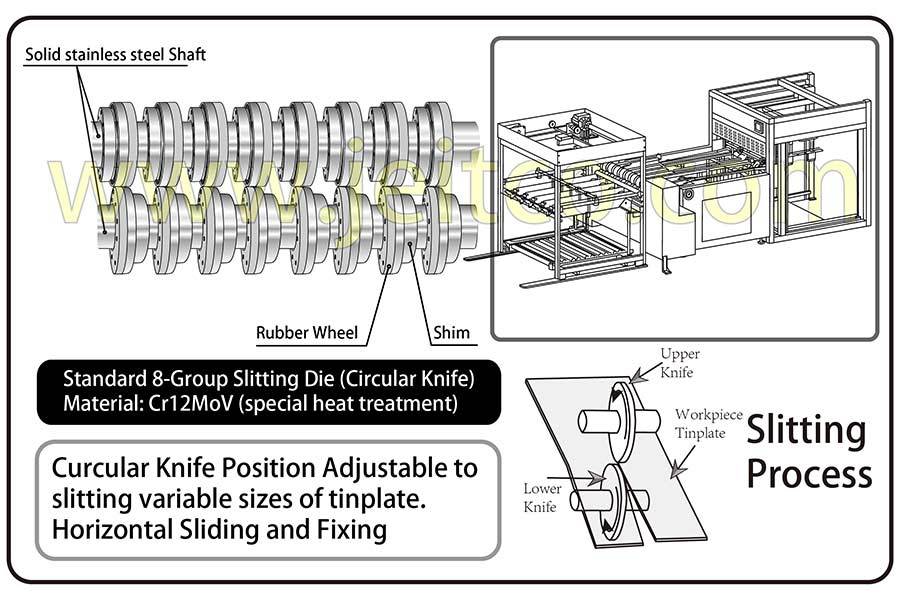

| Slitting Method | Circular Knife |
| No. of Knifes (Slitting Die) | 8-Group |
| Material of Knife (Slitting Die) | High-alloy steel (Cr12MoV) |
| Max. Sheet Thickness: | less 0.45 (mm) |
| Max. Sheet Width: | 1050mm |
| Knife Adjustable | Horizontal Sliding and Fixing |
| Main Frame Material | High Strength Steel for Tinplate Slitter |
| Total Power: | 3.5kW |
| Power Supply Required | 380V 50/60Hz @ Three-Phase Sys |
| Standard | IEC60947 for Electrical System |
| Weight: | 3500kg |
| Construction Size | L6000 x W1600 x H1800 (mm) |
| Lead time: | 8-10 weeks |
| Warranty: | 1st Year FREE CHARGE for parts from shipping date + Lifetime services |
| Packaging | Plywood Case (Standard Export Packaging) |
| Optional Extra | Knife Grinder |
| Operator Manual & Instruction | PDF / Paper printed provided |
The circular knives are made from SKD-11 alloy steel (JIS Standard/GB Standard/DIN Standard), giving excellent cutting effects and maximum wearing resistance.
The circular knives are made from SKD-11 alloy steel (JIS Standard/GB Standard/DIN Standard), giving excellent cutting effects and maximum wearing resistance.
The circular knives are made from SKD-11 alloy steel (JIS Standard/GB Standard/DIN Standard), giving excellent cutting effects and maximum wearing resistance.
The circular knives are made from SKD-11 alloy steel (JIS Standard/GB Standard/DIN Standard), giving excellent cutting effects and maximum wearing resistance.
The circular knives are made from SKD-11 alloy steel (JIS Standard/GB Standard/DIN Standard), giving excellent cutting effects and maximum wearing resistance.
