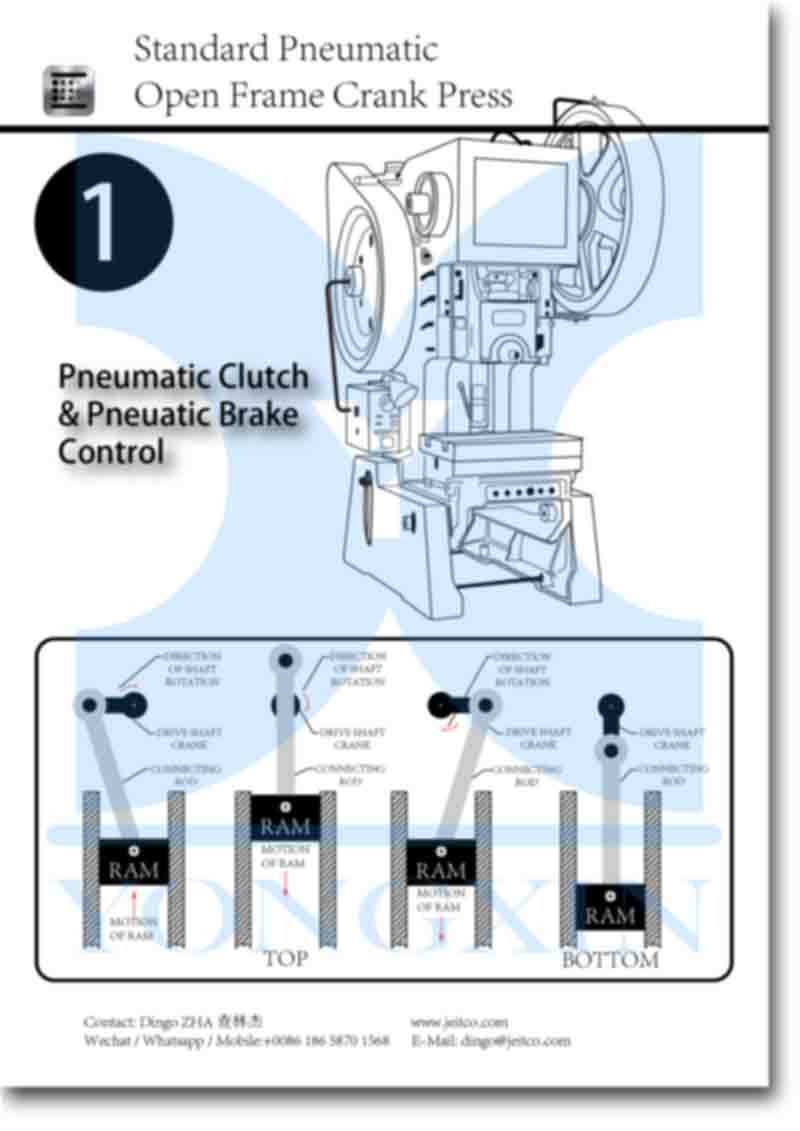

C-Frame (Deep Throat) Punching c/w Pneumatic Clutch & Brake JE21S for Can End Making

产品编号：

1051316891227611136

Model：

JE21S Series

Operation：

Automatic

Application：

Punch Pressing

Can size：

Various on Tailor-made

Speed：

up to 120spm

Classification：

Pressing

keyword：

punch press

pressing machine

press

Product Overview

Message

Feature Workflow BOM Technical Parameter YouTube Video PDF Download

C-Frame (Deep Throat) Punching c/w Pneumatic Clutch & Brake JE21S for Can End Making

1. Deepened throat and enlarged operation area;

2. Horizontal crankshaft;

3. Combined dry pneumatic friction clutch.

4. Manual die height adjustment with scale display.

5. JE21S-100 superior lifting balance cylinder;

6. Dual solenoid valve;

7. PLC of international brand;

Model		JE21S-20	JE21S-25	JE21S40	JE21S-63	JE21S-80	JE21S-100	JE21S-125
Capacity	kN	200	250	400	630	800	1000	1250
Nominal Force	mm	2.5	2.5	4	4	5	6	6
Slide Stroke	mm	60	60	100	120	130	140	140
SPM	min^-1	120	100	70	60	53	40	40
Max. Die Height	mm	170	180	220	300	350	320	320
Die Height Adjustment	mm	70	70	80	80	100	100	100
Between Slide Center & Frame	mm	400×700	400×700	400×700	400×700	400×700	760	760
Bolster (FB×LR)	mm	320×480	400×600	480×710	570×760	580×860	710×1100	720×1200
Bolster Opening (Up Hole Dia.×Dpth×Low Hole Dia.)	mm	120×120	180×180	220×220	220×250	220×260	260×290	260×290
Bolster Thickness	mm	65	70	80	90	100	120	120
Slide Area (FB×LR)）	mm	180×200	210×250	270×320	280×320	280×380	420×560	420×560
Shank Hole (Dia.×Dpth)	mm	Φ40×70	Φ40×70	Φ50×70	Φ50×80	Φ60×75	Φ60×80	Φ60×80
Between Columns	mm	220	330	390	470	450	630	620
Motor Power	kW	2.2	3	4	5.5	7.5	7.5	11
Outline Size (FB×LR×H)	mm	1800×1000 ×1980	1790×1150 ×2288	1965×1330 ×2295	2220×1500 ×2600	2220×1530 ×2650	2600×1600 ×3000	2600×1660 ×3000
Net Weight	kg	2440	3160	4700	5900	6520	12800	13800
