Transfer Press (Progressive WorkingStation) Punching A series for Cone & Dome Making

Multi-station progressive punch pressing machine usually for making complicated shape of metal cans, such as cone of aerosol can, Multi-station progressive press is the best solution with super economic and working efficiency in canmaking industry;

产品编号：

1051316983040925696

Model：

JH21S Series

Operation：

Automatic

Application：

Multi-station Progressive Pressing

Can size：

Various on Tailor-made

Speed：

up to 80spm

Classification：

Pressing

keyword：

Progressive pressing machine

progressive press

multi station progressive press

punch press

Product Overview

Message

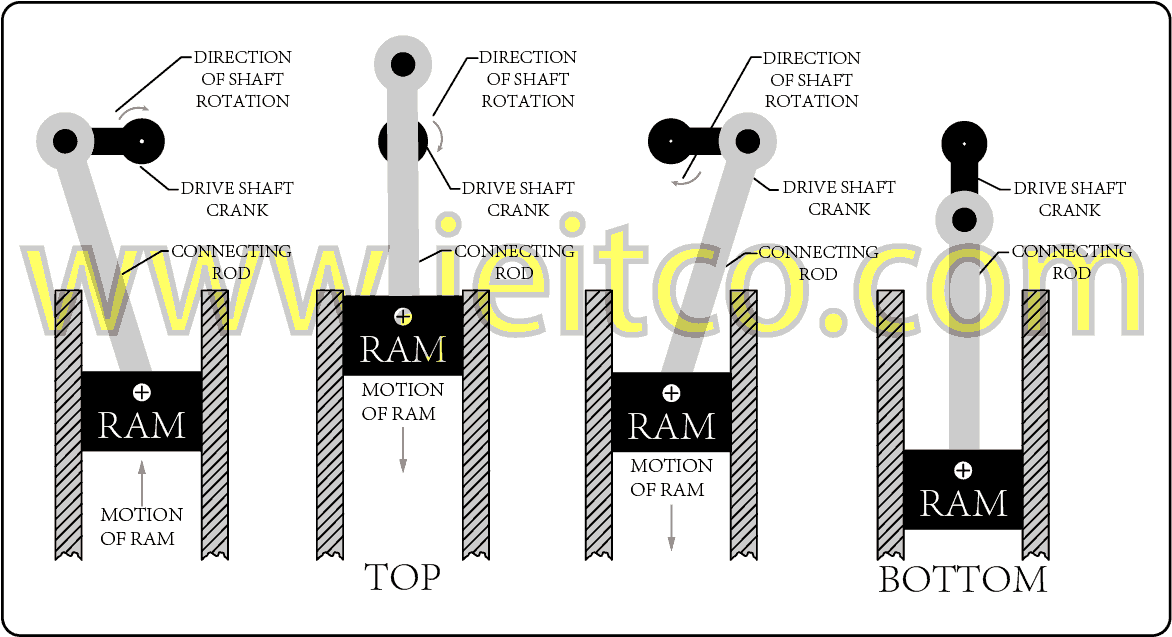

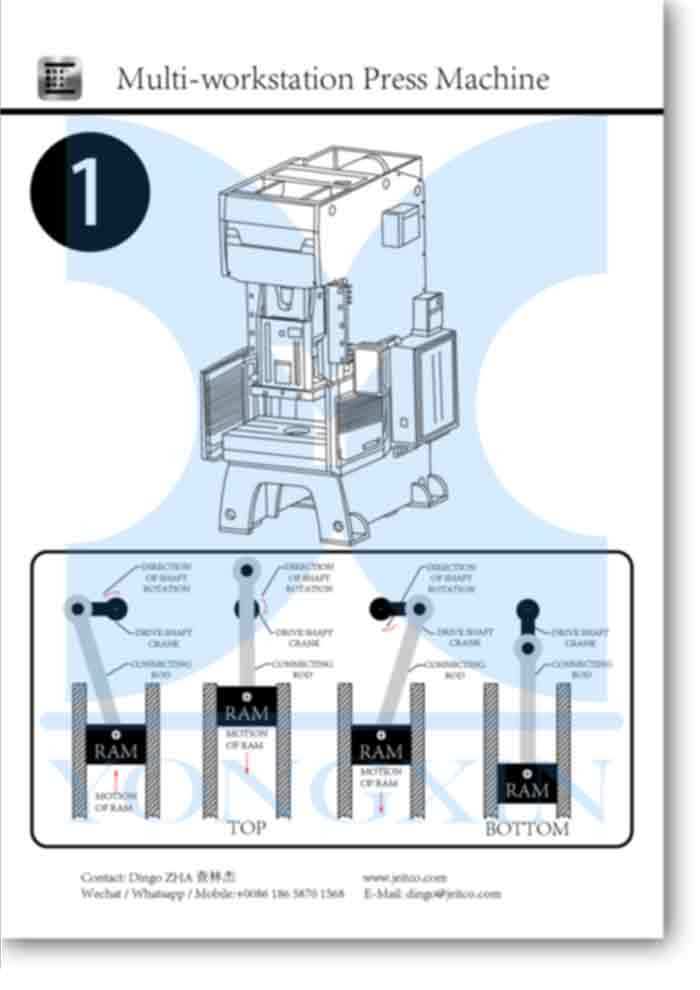

Feature Workflow BOM Technical Parameter YouTube Video PDF Download

Transfer Press (Progressive WorkingStation) Punching A series for Cone & Dome Making

Model		UOM	JH21S-45	JH21S-63	JH21S-80	JH21S-110
Nominal Force		KN	450	630	800	1100
Norminal Stroke		MM	4	4	5	6
Slide Stroke		MM	100	120	140	160
SPM	Fixed	MIN^-1	80	70	60	50
SPM	Variable (Option)	MIN^-1	70-90	60-80	50-70	40-60
Max Die Height		MM	270	300	320	350
Die Height Adjustment		MM	60	80	80	80
Between Slide Center and Frame		MM	710	760	760	760
Bolster （F.B X L-R x H)		MM	440 X 810	580 X 900	580 X 1000	680 X 1150
Bolster opening （Upper Die X Depth X Lower Die）		MM	D180 X 30 X D160	D200 X 40 X D180	D200 X 40 X D180	D260 X 50 X D220
Bolster Thickness		MM	110	110	120	140
Bed Opening （Dia/F.B x L.R )		MM	300 X 300	440 X 460	390 X 520	420 X 540
Slide Area （F.B x L.R )		MM	340 X 410	400 X 480	420 X 560	500 X 650
Shank Hole (Dia x Depth)		MM	D40 X 60	D50 X 80	D50 X 80	D60 X 80
Between Columns		MM	550	560	600	760
Main Motor Power		KW	5.5	5.5	7.5	11
Outline Dimension (F.B x L.R x H)		MM	2,250 X 1,125 X 2,275	2,350 X 1,205 X 2,580	2,350 X 1,290 X 2,800	2,580 X 1,450 X 3,060
Machine Weight		KG	5,500	8,100	10,000	11,500

Model		UOM	JH21S-125	JH21S-160	JH21S-200
Nominal Force		KN	1250	1600	2000
Norminal Stroke		MM	6	6	6
Slide Stroke		MM	160	160	180
SPM	Fixed	MIN^-1	50	40	35
SPM	Variable (Option)	MIN^-1	40-60	35-50	30-40
Max Die Height		MM	350	350	390
Die Height Adjustment		MM	80	110	110
Between Slide Centerand Frame		MM	760	800	800
Bolster （F.B X L-R x H)		MM	680 X 1150	740 X 1300	760 X 1400
Bolster opening （Upper Die X Depth X Lower Die）		MM	D260 X 50 X D220	D300 X 50 X D260	D300 X 50 X D260
Bolster Thickness		MM	140	150	160
Bed Opening （Dia/F.B x L.R )		MM	420 X 540	480 X 600	480 X 800
Slide Area （F.B x L.R )		MM	540 X 680	580 X 770	600 X 800
Shank Hole (Dia x Depth)		MM	D60 X 80	D65 X 85	D65 X 90
Between Columns		MM	760	830	810
Main Motor Power		KW	11	15	18.5
Outline Dimension (F.B x L.R x H)		MM	2,580 X 1,490 X 3060	2,840 X 1,630 X 3,210	2,800 X 1,645 X 3,450
Machine Weight		KG	12,280	17,900	18,500
