Automatic F style Oblong Can Making Line from Side Seam Locating - Square Can Body Forming - Flanging - Bottoms - Tops Sealing
产品编号：
1051290581897928704
Operation：
Automatic
Can Size：
1-5L F-style Oblong Can
Speed：
22-32 CPM (Can Size Dependent)

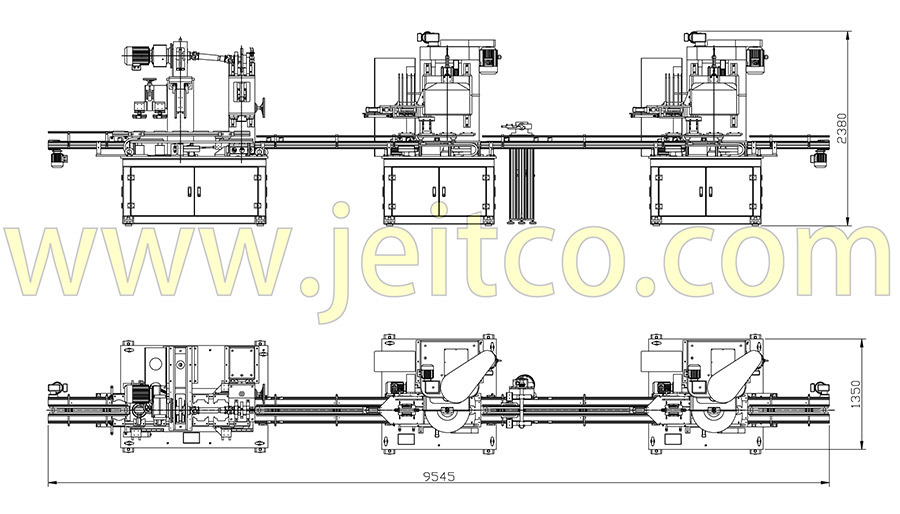

Line Dimension：
L10,000 x W1,500 x H2,400(mm)
Line Weight：
15,000kg Approx.
Classification：
keyword：
square can making line
square can line
square can production line
rectangle can line
automatic rectangle can line
canmaking
Product Overview
Automatic F style Oblong Can Making Line from Side Seam Locating - Square Can Body Forming - Flanging - Bottoms - Tops Sealing
| Product Name | Small Square Fully Automatic Production Line |
| Usage | Automatic Square Tin Can Making |
| Item Condition | Brand-New |
| Applicable Can Shape | Square Can |
| Applicable Can Vol. | 1-5 Litre |
| Main Color | Blue + White |
| Output Capacity (CPM): | 22-32Cans/min. (Can Size Dependent) |
| Machine Operation Mode | Automatic Pneumatic-Drive + Hydraulic-Drive |
| Max. Can Height | 200-450 (mm) |
| Max. Sheet Thickness: | 0.4 (mm) |
| Lid Feed-in Mode | Automatic Feed-in |
| Automatic Flanging Machine Unit | Built-in |
| Upending Device | Built-in |
| PLC Device | Built-in |
| VFD Device | Built-in |
| Auto Feed-Can-in Detection | Provided （For matching seaming linkwork Sys.) |
| Auto Lubrication Sys. | Buiilt-in (Timely lubricating+Lubricating frequency adjustable) |
| Touch Panel Screen Device | Built-in 7'' Color Display (English Language Interface) |
| Input Conveyor Control System | Pacing Speed Drived by Gear Motor （Setting Availble） |
| Output Conveyor Control System | Constant Speed drived by Gear Motor （Setting Availble） |
| Seaming Mode | High Precision Double Seaming |
| No. of Seaming Rollers | 6-Roller |
| Seaming Roller Material | High-grade Alloy Tool Steel (Cr12MoV) |
| Seaming Chuck Material | High-grade Alloy Tool Steel (Cr12MoV) |
| Main Frame Material | High Strength Steel for Canmaking |
| Power System Overload & Short-circuit Protection | Provided |
| Pad-Lock Emergency Switch (ON-OFF) | Built-in |
| Protection Grade for Electrical Switch-gear Box | Class Index IP55 |
| Total Power: | 11kW |
| Motor Rotation Speed | Variable |
| Power Supply Required | 380V 50/60Hz @ Three-Phase Sys. |
| Motor Supplier | SIEMENS |
| Air Pressure Require | No less 0.6MPa |
| Pneumatic System Supplier | AirTAC |
| Touch Panel Screen Device Supplier | Schneider Electric |
| Linear Motion Guide Rail System | HIWIN |
| PLC Device Supplier | Delta |
| Electrical Control & Distribution System Supplier | Schneider Electric + DELTA + OMRON |
| Inductive / Photoelectric Sensor Supplier | CONTROLWAY + HANYONG NUX + BANNER |
| Standard | IEC60947 for Electrical System |
| Construction Size | L10000 x W1500 x H2400 (mm) 【entire length customed design provided】 |
| Weight: | 15,000kg |
| Lead time: | 12-14 weeks |
| Packaging | Plywood Case (Standard Export Packaging) |
| Warranty: | 1st Year FREE CHARGE for parts from shipping date + Lifetime services |
| Operator Manual & Instruction | PDF / Printed paper provided |
