Home page

Food can Basic Shell Line

产品编号：

1051328017357168640

Operation：

Can Size：

30#-82# (D33.7-85.2mm)

Speed：

up to 200 EPM

Line Dimension：

L22,900 X W1,210 X H2,520 (mm)

Line Weight：

8,100kg

Classification：

Solutions

keyword：

Product Overview

Message

Feature Workflow BOM Technical Parameter YouTube Video PDF Download

Automatic Twist-off Cap Making Turn-key Production Line (Dual-Lane 200EPM)

Above is a twist-off cap production line, with high production capacity.

It consists of Automatic CNC Feeding System, Gantry Press, Forming & Injection Machine, Drying Oven and Counting Machine.

Production Capacity For Reference: Max.200epm / Max.400epm

Name	Automatic Twist Off Cap Making Line
Operation	Fully Automatic
Model	Depends on production capacity
Usage	It's used for punching tinplate twist off cap
Production Capacity	200-400 caps/min
Suitable Cap Size	#30-#82 (Max. Ø33.70-85.20mm)
Suitable Cap Height	Max. H12.90-10.90mm
Power	5.5KW
Dimension	L22,900 x W1,210 x H2520mm
Weight	8,100Kg Approx.

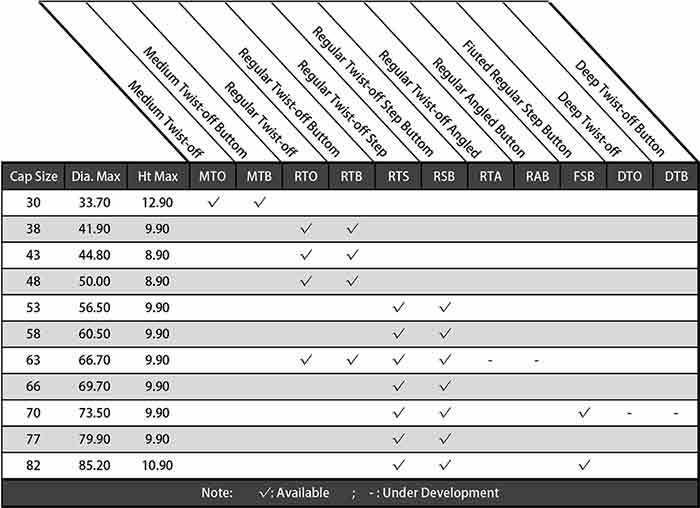

Cap Style

DTB: deep skirt cap with safety button;

MTO: medium skirt cap without safety button;

DTO: deep skirt cap without safety button;

MTB: medium skirt cap with safety button;

RTS: regular twist cap with steps;

RTO: regular twist cap without safety button;

RSB: regular twist cap with steps & safety button;

RTB: regular twist cap with safety button;

FAO: fluted skirt twist cap without safety button;

FAB: fluted skirt twist cap with safety button;

Feature Definition:

Safety button: a circular portion at the center of the cap hat acts as an audible indicator for vacuum device in stage and audible visual temper evidence before opening.

Deep skirt: deep drawn cap having an overall skirt height of approx, 15 mm.

Regular: a drawn cap having an overall skirt height of approx, 10 mm.

Fluted: a drawn cap having flutes or knurls on the side skirt for better gripping.

Step: a drawn cap having a step on the panel.

Automatic Twist-off Cap Making Turn-key Production Line (Dual-Lane 200EPM)

Twist-off Cap Style

DTB: deep skirt cap with safety button;

MTO: medium skirt cap without safety button;

DTO: deep skirt cap without safety button;

MTB: medium skirt cap with safety button;

RTS: regular twist cap with steps;

RTO: regular twist cap without safety button;

RSB: regular twist cap with steps & safety button;

RTB: regular twist cap with safety button;

FAO: fluted skirt twist cap without safety button;

FAB: fluted skirt twist cap with safety button;

Feature Definition:

Safety button: a circular portion at the center of the cap hat acts as an audible indicator for vacuum device in stage and audible visual temper evidence before opening.

Deep skirt: deep drawn cap having an overall skirt height of approx, 15 mm.

Regular: a drawn cap having an overall skirt height of approx, 10 mm.

Fluted: a drawn cap having flutes or knurls on the side skirt for better gripping.

Step: a drawn cap having a step on the panel.

Automatic Twist-off Cap Making Turn-key Production Line (Dual-Lane 200EPM)

twist-off-cap forming process

Twist-off Cap Style

DTB: deep skirt cap with safety button;

MTO: medium skirt cap without safety button;

DTO: deep skirt cap without safety button;

MTB: medium skirt cap with safety button;

RTS: regular twist cap with steps;

RTO: regular twist cap without safety button;

RSB: regular twist cap with steps & safety button;

RTB: regular twist cap with safety button;

FAO: fluted skirt twist cap without safety button;

FAB: fluted skirt twist cap with safety button;

Feature Definition:

Safety button: a circular portion at the center of the cap hat acts as an audible indicator for vacuum device in stage and audible visual temper evidence before opening.

Deep skirt: deep drawn cap having an overall skirt height of approx, 15 mm.

Regular: a drawn cap having an overall skirt height of approx, 10 mm.

Fluted: a drawn cap having flutes or knurls on the side skirt for better gripping.

Step: a drawn cap having a step on the panel.

twist-off-cap forming process

Twist-off Cap Style

DTB: deep skirt cap with safety button;

MTO: medium skirt cap without safety button;

DTO: deep skirt cap without safety button;

MTB: medium skirt cap with safety button;

RTS: regular twist cap with steps;

RTO: regular twist cap without safety button;

RSB: regular twist cap with steps & safety button;

RTB: regular twist cap with safety button;

FAO: fluted skirt twist cap without safety button;

FAB: fluted skirt twist cap with safety button;

Feature Definition:

Safety button: a circular portion at the center of the cap hat acts as an audible indicator for vacuum device in stage and audible visual temper evidence before opening.

Deep skirt: deep drawn cap having an overall skirt height of approx, 15 mm.

Regular: a drawn cap having an overall skirt height of approx, 10 mm.

Fluted: a drawn cap having flutes or knurls on the side skirt for better gripping.

Step: a drawn cap having a step on the panel.

twist-off-cap forming process

Twist-off Cap Style

DTB: deep skirt cap with safety button;

MTO: medium skirt cap without safety button;

DTO: deep skirt cap without safety button;

MTB: medium skirt cap with safety button;

RTS: regular twist cap with steps;

RTO: regular twist cap without safety button;

RSB: regular twist cap with steps & safety button;

RTB: regular twist cap with safety button;

FAO: fluted skirt twist cap without safety button;

FAB: fluted skirt twist cap with safety button;

Feature Definition:

Safety button: a circular portion at the center of the cap hat acts as an audible indicator for vacuum device in stage and audible visual temper evidence before opening.

Deep skirt: deep drawn cap having an overall skirt height of approx, 15 mm.

Regular: a drawn cap having an overall skirt height of approx, 10 mm.

Fluted: a drawn cap having flutes or knurls on the side skirt for better gripping.

Step: a drawn cap having a step on the panel.

Automatic Twist-off Cap Making Turn-key Production Line (Dual-Lane 200EPM)

Twist-off Cap Style

DTB: deep skirt cap with safety button;

MTO: medium skirt cap without safety button;

DTO: deep skirt cap without safety button;

MTB: medium skirt cap with safety button;

RTS: regular twist cap with steps;

RTO: regular twist cap without safety button;

RSB: regular twist cap with steps & safety button;

RTB: regular twist cap with safety button;

FAO: fluted skirt twist cap without safety button;

FAB: fluted skirt twist cap with safety button;

Feature Definition:

Safety button: a circular portion at the center of the cap hat acts as an audible indicator for vacuum device in stage and audible visual temper evidence before opening.

Deep skirt: deep drawn cap having an overall skirt height of approx, 15 mm.

Regular: a drawn cap having an overall skirt height of approx, 10 mm.

Fluted: a drawn cap having flutes or knurls on the side skirt for better gripping.

Step: a drawn cap having a step on the panel.

Automatic Twist-off Cap Making Turn-key Production Line (Dual-Lane 200EPM)

twist-off-cap forming process

Twist-off Cap Style

DTB: deep skirt cap with safety button;

MTO: medium skirt cap without safety button;

DTO: deep skirt cap without safety button;

MTB: medium skirt cap with safety button;

RTS: regular twist cap with steps;

RTO: regular twist cap without safety button;

RSB: regular twist cap with steps & safety button;

RTB: regular twist cap with safety button;

FAO: fluted skirt twist cap without safety button;

FAB: fluted skirt twist cap with safety button;

Feature Definition:

Safety button: a circular portion at the center of the cap hat acts as an audible indicator for vacuum device in stage and audible visual temper evidence before opening.

Deep skirt: deep drawn cap having an overall skirt height of approx, 15 mm.

Regular: a drawn cap having an overall skirt height of approx, 10 mm.

Fluted: a drawn cap having flutes or knurls on the side skirt for better gripping.

Step: a drawn cap having a step on the panel.

twist-off-cap forming process

Twist-off Cap Style

DTB: deep skirt cap with safety button;

MTO: medium skirt cap without safety button;

DTO: deep skirt cap without safety button;

MTB: medium skirt cap with safety button;

RTS: regular twist cap with steps;

RTO: regular twist cap without safety button;

RSB: regular twist cap with steps & safety button;

RTB: regular twist cap with safety button;

FAO: fluted skirt twist cap without safety button;

FAB: fluted skirt twist cap with safety button;

Feature Definition:

Safety button: a circular portion at the center of the cap hat acts as an audible indicator for vacuum device in stage and audible visual temper evidence before opening.

Deep skirt: deep drawn cap having an overall skirt height of approx, 15 mm.

Regular: a drawn cap having an overall skirt height of approx, 10 mm.

Fluted: a drawn cap having flutes or knurls on the side skirt for better gripping.

Step: a drawn cap having a step on the panel.

twist-off-cap forming process

Twist-off Cap Style

DTB: deep skirt cap with safety button;

MTO: medium skirt cap without safety button;

DTO: deep skirt cap without safety button;

MTB: medium skirt cap with safety button;

RTS: regular twist cap with steps;

RTO: regular twist cap without safety button;

RSB: regular twist cap with steps & safety button;

RTB: regular twist cap with safety button;

FAO: fluted skirt twist cap without safety button;

FAB: fluted skirt twist cap with safety button;

Feature Definition:

Safety button: a circular portion at the center of the cap hat acts as an audible indicator for vacuum device in stage and audible visual temper evidence before opening.

Deep skirt: deep drawn cap having an overall skirt height of approx, 15 mm.

Regular: a drawn cap having an overall skirt height of approx, 10 mm.

Fluted: a drawn cap having flutes or knurls on the side skirt for better gripping.

Step: a drawn cap having a step on the panel.

Automatic Twist-off Cap Making Turn-key Production Line (Dual-Lane 200EPM)

Twist-off Cap Style

DTB: deep skirt cap with safety button;

MTO: medium skirt cap without safety button;

DTO: deep skirt cap without safety button;

MTB: medium skirt cap with safety button;

RTS: regular twist cap with steps;

RTO: regular twist cap without safety button;

RSB: regular twist cap with steps & safety button;

RTB: regular twist cap with safety button;

FAO: fluted skirt twist cap without safety button;

FAB: fluted skirt twist cap with safety button;

Feature Definition:

Safety button: a circular portion at the center of the cap hat acts as an audible indicator for vacuum device in stage and audible visual temper evidence before opening.

Deep skirt: deep drawn cap having an overall skirt height of approx, 15 mm.

Regular: a drawn cap having an overall skirt height of approx, 10 mm.

Fluted: a drawn cap having flutes or knurls on the side skirt for better gripping.

Step: a drawn cap having a step on the panel.

Automatic Twist-off Cap Making Turn-key Production Line (Dual-Lane 200EPM)

twist-off-cap forming process

Twist-off Cap Style

DTB: deep skirt cap with safety button;

MTO: medium skirt cap without safety button;

DTO: deep skirt cap without safety button;

MTB: medium skirt cap with safety button;

RTS: regular twist cap with steps;

RTO: regular twist cap without safety button;

RSB: regular twist cap with steps & safety button;

RTB: regular twist cap with safety button;

FAO: fluted skirt twist cap without safety button;

FAB: fluted skirt twist cap with safety button;

Feature Definition:

Safety button: a circular portion at the center of the cap hat acts as an audible indicator for vacuum device in stage and audible visual temper evidence before opening.

Deep skirt: deep drawn cap having an overall skirt height of approx, 15 mm.

Regular: a drawn cap having an overall skirt height of approx, 10 mm.

Fluted: a drawn cap having flutes or knurls on the side skirt for better gripping.

Step: a drawn cap having a step on the panel.

twist-off-cap forming process

Twist-off Cap Style

DTB: deep skirt cap with safety button;

MTO: medium skirt cap without safety button;

DTO: deep skirt cap without safety button;

MTB: medium skirt cap with safety button;

RTS: regular twist cap with steps;

RTO: regular twist cap without safety button;

RSB: regular twist cap with steps & safety button;

RTB: regular twist cap with safety button;

FAO: fluted skirt twist cap without safety button;

FAB: fluted skirt twist cap with safety button;

Feature Definition:

Safety button: a circular portion at the center of the cap hat acts as an audible indicator for vacuum device in stage and audible visual temper evidence before opening.

Deep skirt: deep drawn cap having an overall skirt height of approx, 15 mm.

Regular: a drawn cap having an overall skirt height of approx, 10 mm.

Fluted: a drawn cap having flutes or knurls on the side skirt for better gripping.

Step: a drawn cap having a step on the panel.

twist-off-cap forming process

Twist-off Cap Style

DTB: deep skirt cap with safety button;

MTO: medium skirt cap without safety button;

DTO: deep skirt cap without safety button;

MTB: medium skirt cap with safety button;

RTS: regular twist cap with steps;

RTO: regular twist cap without safety button;

RSB: regular twist cap with steps & safety button;

RTB: regular twist cap with safety button;

FAO: fluted skirt twist cap without safety button;

FAB: fluted skirt twist cap with safety button;

Feature Definition:

Safety button: a circular portion at the center of the cap hat acts as an audible indicator for vacuum device in stage and audible visual temper evidence before opening.

Deep skirt: deep drawn cap having an overall skirt height of approx, 15 mm.

Regular: a drawn cap having an overall skirt height of approx, 10 mm.

Fluted: a drawn cap having flutes or knurls on the side skirt for better gripping.

Step: a drawn cap having a step on the panel.

Automatic Twist-off Cap Making Turn-key Production Line (Dual-Lane 200EPM)

Twist-off Cap Style

DTB: deep skirt cap with safety button;

MTO: medium skirt cap without safety button;

DTO: deep skirt cap without safety button;

MTB: medium skirt cap with safety button;

RTS: regular twist cap with steps;

RTO: regular twist cap without safety button;

RSB: regular twist cap with steps & safety button;

RTB: regular twist cap with safety button;

FAO: fluted skirt twist cap without safety button;

FAB: fluted skirt twist cap with safety button;

Feature Definition:

Safety button: a circular portion at the center of the cap hat acts as an audible indicator for vacuum device in stage and audible visual temper evidence before opening.

Deep skirt: deep drawn cap having an overall skirt height of approx, 15 mm.

Regular: a drawn cap having an overall skirt height of approx, 10 mm.

Fluted: a drawn cap having flutes or knurls on the side skirt for better gripping.

Step: a drawn cap having a step on the panel.

Automatic Twist-off Cap Making Turn-key Production Line (Dual-Lane 200EPM)

twist-off-cap forming process

Twist-off Cap Style

DTB: deep skirt cap with safety button;

MTO: medium skirt cap without safety button;

DTO: deep skirt cap without safety button;

MTB: medium skirt cap with safety button;

RTS: regular twist cap with steps;

RTO: regular twist cap without safety button;

RSB: regular twist cap with steps & safety button;

RTB: regular twist cap with safety button;

FAO: fluted skirt twist cap without safety button;

FAB: fluted skirt twist cap with safety button;

Feature Definition:

Safety button: a circular portion at the center of the cap hat acts as an audible indicator for vacuum device in stage and audible visual temper evidence before opening.

Deep skirt: deep drawn cap having an overall skirt height of approx, 15 mm.

Regular: a drawn cap having an overall skirt height of approx, 10 mm.

Fluted: a drawn cap having flutes or knurls on the side skirt for better gripping.

Step: a drawn cap having a step on the panel.

twist-off-cap forming process

Twist-off Cap Style

DTB: deep skirt cap with safety button;

MTO: medium skirt cap without safety button;

DTO: deep skirt cap without safety button;

MTB: medium skirt cap with safety button;

RTS: regular twist cap with steps;

RTO: regular twist cap without safety button;

RSB: regular twist cap with steps & safety button;

RTB: regular twist cap with safety button;

FAO: fluted skirt twist cap without safety button;

FAB: fluted skirt twist cap with safety button;

Feature Definition:

Safety button: a circular portion at the center of the cap hat acts as an audible indicator for vacuum device in stage and audible visual temper evidence before opening.

Deep skirt: deep drawn cap having an overall skirt height of approx, 15 mm.

Regular: a drawn cap having an overall skirt height of approx, 10 mm.

Fluted: a drawn cap having flutes or knurls on the side skirt for better gripping.

Step: a drawn cap having a step on the panel.

twist-off-cap forming process

Twist-off Cap Style

DTB: deep skirt cap with safety button;

MTO: medium skirt cap without safety button;

DTO: deep skirt cap without safety button;

MTB: medium skirt cap with safety button;

RTS: regular twist cap with steps;

RTO: regular twist cap without safety button;

RSB: regular twist cap with steps & safety button;

RTB: regular twist cap with safety button;

FAO: fluted skirt twist cap without safety button;

FAB: fluted skirt twist cap with safety button;

Feature Definition:

Safety button: a circular portion at the center of the cap hat acts as an audible indicator for vacuum device in stage and audible visual temper evidence before opening.

Deep skirt: deep drawn cap having an overall skirt height of approx, 15 mm.

Regular: a drawn cap having an overall skirt height of approx, 10 mm.

Fluted: a drawn cap having flutes or knurls on the side skirt for better gripping.

Step: a drawn cap having a step on the panel.

Automatic Twist-off Cap Making Turn-key Production Line (Dual-Lane 200EPM)

Twist-off Cap Style

DTB: deep skirt cap with safety button;

MTO: medium skirt cap without safety button;

DTO: deep skirt cap without safety button;

MTB: medium skirt cap with safety button;

RTS: regular twist cap with steps;

RTO: regular twist cap without safety button;

RSB: regular twist cap with steps & safety button;

RTB: regular twist cap with safety button;

FAO: fluted skirt twist cap without safety button;

FAB: fluted skirt twist cap with safety button;

Feature Definition:

Safety button: a circular portion at the center of the cap hat acts as an audible indicator for vacuum device in stage and audible visual temper evidence before opening.

Deep skirt: deep drawn cap having an overall skirt height of approx, 15 mm.

Regular: a drawn cap having an overall skirt height of approx, 10 mm.

Fluted: a drawn cap having flutes or knurls on the side skirt for better gripping.

Step: a drawn cap having a step on the panel.

Automatic Twist-off Cap Making Turn-key Production Line (Dual-Lane 200EPM)

twist-off-cap forming process

Twist-off Cap Style

DTB: deep skirt cap with safety button;

MTO: medium skirt cap without safety button;

DTO: deep skirt cap without safety button;

MTB: medium skirt cap with safety button;

RTS: regular twist cap with steps;

RTO: regular twist cap without safety button;

RSB: regular twist cap with steps & safety button;

RTB: regular twist cap with safety button;

FAO: fluted skirt twist cap without safety button;

FAB: fluted skirt twist cap with safety button;

Feature Definition:

Safety button: a circular portion at the center of the cap hat acts as an audible indicator for vacuum device in stage and audible visual temper evidence before opening.

Deep skirt: deep drawn cap having an overall skirt height of approx, 15 mm.

Regular: a drawn cap having an overall skirt height of approx, 10 mm.

Fluted: a drawn cap having flutes or knurls on the side skirt for better gripping.

Step: a drawn cap having a step on the panel.

twist-off-cap forming process

Twist-off Cap Style

DTB: deep skirt cap with safety button;

MTO: medium skirt cap without safety button;

DTO: deep skirt cap without safety button;

MTB: medium skirt cap with safety button;

RTS: regular twist cap with steps;

RTO: regular twist cap without safety button;

RSB: regular twist cap with steps & safety button;

RTB: regular twist cap with safety button;

FAO: fluted skirt twist cap without safety button;

FAB: fluted skirt twist cap with safety button;

Feature Definition:

Safety button: a circular portion at the center of the cap hat acts as an audible indicator for vacuum device in stage and audible visual temper evidence before opening.

Deep skirt: deep drawn cap having an overall skirt height of approx, 15 mm.

Regular: a drawn cap having an overall skirt height of approx, 10 mm.

Fluted: a drawn cap having flutes or knurls on the side skirt for better gripping.

Step: a drawn cap having a step on the panel.

twist-off-cap forming process

Twist-off Cap Style

DTB: deep skirt cap with safety button;

MTO: medium skirt cap without safety button;

DTO: deep skirt cap without safety button;

MTB: medium skirt cap with safety button;

RTS: regular twist cap with steps;

RTO: regular twist cap without safety button;

RSB: regular twist cap with steps & safety button;

RTB: regular twist cap with safety button;

FAO: fluted skirt twist cap without safety button;

FAB: fluted skirt twist cap with safety button;

Feature Definition:

Safety button: a circular portion at the center of the cap hat acts as an audible indicator for vacuum device in stage and audible visual temper evidence before opening.

Deep skirt: deep drawn cap having an overall skirt height of approx, 15 mm.

Regular: a drawn cap having an overall skirt height of approx, 10 mm.

Fluted: a drawn cap having flutes or knurls on the side skirt for better gripping.

Step: a drawn cap having a step on the panel.

COOKIES

Our website uses cookies and similar technologies to personalize the advertising shown to you and to help you get the best experience on our website. For more information, see our Privacy & Cookie Policy

COOKIES

required

These cookies are necessary for basic functions such as payment. Standard cookies cannot be turned off and do not store any of your information.

analyze

These cookies collect information, such as how many people are using our site or which pages are popular, to help us improve the customer experience. Turning these cookies off will mean we can't collect information to improve your experience.

Feature

These cookies enable the website to provide enhanced functionality and personalization. They may be set by us or by third-party providers whose services we have added to our pages. If you do not allow these cookies, some or all of these services may not function properly.

advertise

These cookies help us understand what you are interested in so that we can show you relevant advertising on other websites. Turning these cookies off will mean we are unable to show you any personalized advertising.

+86 186 5870 1568

dingo@jeitco.com Response within 10 min.

Automatic Twist-off Cap Making Turn-key Production Line (Dual-Lane 200EPM)

COOKIES

COOKIES

dingo@jeitco.com　 Response within 10 min.
